Finding the Margin: Constraints

We constrain $\vec{w}$ and b such that

$+ cases \geq 1$ and $- cases \leq -1$

$\vec{w} \cdot \vec{x}_{+} + b \geq 1$ and $\vec{w} \cdot \vec{x}_{-} + b \leq -1$

Finding the Margin: Constraints

Now define $y_i = -1 \vee 1$ to indicate class label

Multiply our previous constraint equations by $y_i$

$y_i (\vec{w} \cdot \vec{x}_{i} + b ) \geq 1$

and

$y_i (\vec{w} \cdot \vec{x}_{i} + b ) \geq 1$

$y_i$ was negative for this case, hence $\geq \rightarrow \leq$

Finding the Margin: Constraints

Using the same formulation introduce another constraint:

For $x_i$ within the margin:

$y_i (\vec{w} \cdot \vec{x}_{i} + b ) - 1 = 0$

We still don't know where the lines are, but we have more constraints!

Finding the Margin: Width

Support vectors pass through at least 1 point of their respective class.

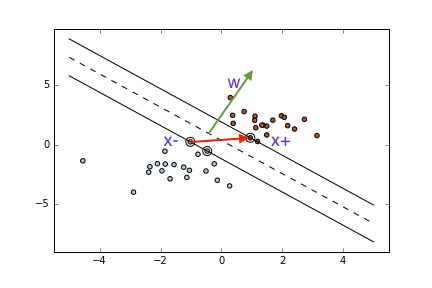

Therefore, there is some vector between 2 points along the positive and negative SVs

Finding the Margin: Width

We can express the width of the margin as

$width = ( \vec{x}_{-} - \vec{x}_{+} ) \cdot \frac{ \vec{w} }{|\vec{w}|}$

Finding the Margin: Width

Apply the constraint for $x_i$ that lie within the margin:

$y_i (\vec{w} \cdot \vec{x}_{i} + b ) - 1 = 0$

Rearrange the constraint, and substitute $y_i=1$ (for now, consider only positive cases)

$y_i (\vec{w} \cdot \vec{x}_{i} + b ) - 1 = 0$

$\vec{w} \cdot \vec{x}_{i} = 1 - b$

Finding the Margin: Width

$width = ( \vec{x}_{-} - \vec{x}_{+} ) \cdot \frac{ \vec{w} }{|\vec{w}|}$

$width = \frac{ \vec{x}_{+} \cdot \vec{w} }{|\vec{w}|} - \frac{ \vec{x}_{-} \cdot \vec{w} }{|\vec{w}|}$

Now substitute from our constraint:

$\frac{ \vec{x}_{+} \cdot \vec{w} }{|\vec{w}|} = \frac{ 1 - b }{|\vec{w}|}$

For the negative term:

$\frac{ \vec{x}_{-} \cdot \vec{w} }{|\vec{w}|} = \frac{ -1 - b }{|\vec{w}|}$

Finding the Margin: Width

Now substitute back into the width equation

$width = \frac{ \vec{x}_{+} \cdot \vec{w} }{|\vec{w}|} - \frac{ \vec{x}_{-} \cdot \vec{w} }{|\vec{w}|}$

$width = \frac{ 1 - b }{|\vec{w}|} - \frac{ -1 - b }{|\vec{w}|}$

$width = \frac{2}{|\vec{w}|}$

Finding the Margin: Optimization

Our goal is to maximize the width of the margin, therefore we want to maximize $\frac{1}{|\vec{w}|}$ or alternatively, minimize $|\vec{w}|$

For mathematical convenience let's find the values of $\vec{w}$ and $b$ that minimize $\frac{|\vec{w}|^2}{2}$

Finding the Margin: Optimization

We also need to maintain our constraints when optimizing:

$y_i ( \vec{w} \cdot \vec{x}_i + b ) - 1 = 0$

The Lagrangian:

$L = \frac{|\vec{w}|^2}{2} - \sum \alpha_i [ y_i ( \vec{w} \cdot \vec{x}_i + b ) - 1]$

$\frac{\delta L}{\delta \vec{w}} = \vec{w} - \sum \alpha_i y_i \vec{x}_i$

To find an extrema, $ \frac{\delta L}{\delta \vec{w}}= 0$

$\vec{w} = \displaystyle \sum_i \alpha_i y_i \vec{x}_i$

Finding the Margin: Optimization

We need to differentiate with respect to $b$ as well

$\frac{\delta L}{\delta b} = - \sum x_i y_i$

To find an extrema, $\frac{\delta L}{\delta b} = 0$

$\sum \alpha_i y_i = 0$

Finding the Margin: Optimization

Let's return to the expression we're optimizing:

$L = \frac{|\vec{w}|^2}{2} - \sum \alpha_i [ y_i ( \vec{w} \cdot \vec{x}_i + b ) - 1]$

The first term can now be rewritten with

$\vec{w} = \displaystyle \sum_i \alpha_i y_i \vec{x}_i$

as

$\frac{|\vec{w}|^2}{2} = \frac{1}{2}( \sum \alpha_i y_i \vec{x}_i ) \cdot ( \sum \alpha_i y_i \vec{x}_i )$

Finding the Margin: Optimization

Let's return to the expression we're optimizing:

$L = \frac{|\vec{w}|^2}{2} - \sum \alpha_i [ y_i ( \vec{w} \cdot \vec{x}_i + b ) - 1]$

The second term can be rewritten with

$\vec{w} = \displaystyle \sum \alpha_i y_i \vec{x}_i$

$\sum \alpha_i y_i \vec{x}_i ( \sum \alpha_i y_i \vec{x}_i ) - \sum \alpha_i y_i b + \sum \alpha_i$

Rearrange b and apply $\sum \alpha_i y_i = 0$ to remove "$b \sum \alpha_i y_i$":

$\sum \alpha_i y_i \vec{x}_i ( \sum \alpha_i y_i \vec{x}_i ) + \sum \alpha_i$

Finding the Margin: Optimization

Recombine the previous simplifications:

$L = \frac{1}{2} ( \sum \alpha_i y_i \vec{x}_i ) \cdot ( \sum \alpha_i y_i \vec{x}_i ) - \sum \alpha_i y_i \vec{x}_i \cdot ( \sum \alpha_i y_i \vec{x}_i ) + \sum \alpha_i$

More simplification:

$L = \sum \alpha_i - \frac{1}{2} \displaystyle \sum_i \displaystyle \sum_j \alpha_i \alpha_j y_i y_j \vec{x}_i \cdot \vec{x}_j$

This is what we want to optimize!

SVM and Kernels

Use a transformation $\phi(\vec{x})$ and operate in a different space

Our optimization target is then:

$L = \sum \alpha_i - \frac{1}{2} \displaystyle \sum_i \displaystyle \sum_j \alpha_i \alpha_j y_i y_j \phi (\vec{x}_i) \cdot \phi (\vec{x}_j)$

Our decision rule is then:

If $\sum \alpha_i y_i \phi( \vec{x}_i ) \cdot \phi( \vec{U} )+ b \geq 0$, then positive class

Note that $\phi$ only occurs as $\phi (\vec{x}_i) \cdot \phi (\vec{x}_j)$

SVM and Kernels

Now we define a kernel function $K( x_i, x_j ) = \phi (\vec{x}_i) \cdot \phi (\vec{x}_j)$

We only ever have to compute $K( x_i, x_j )$, not $\phi$

This is called the kernel trick

Our optimization target is then:

$L = \sum \alpha_i - \frac{1}{2} \displaystyle \sum_i \displaystyle \sum_j \alpha_i \alpha_j y_i y_j K( x_i, x_j )$

Our decision rule is then:

If $\sum \alpha_i y_i K( x_i, x_j )+ b \geq 0$, then positive class

Kernels

Example kernels:

• Linear: $\vec{U} \cdot \vec{V}$
• Polynomial: $(\vec{U} \cdot \vec{V} + 1)^n$
• Radial basis functions: $e^{-\frac{| U - V |}{\sigma}}$
