Unsupervised learning

Machine learning on unlabeled data

Techniques include: clustering, expectation-maximization, some signal processing (PCA), etc.

Clustering

Grouping instances/objects into sets/clusters based on similarity

Clustering: Notation

Partition data into clusters $C_1,...,C_k$

Centroid of cluster $j$: $\mu_j = \frac{1}{|C_j|} \displaystyle \sum_{x \in C_j} x$

Centroid of dataset: $\mu = \frac{1}{N} \displaystyle \sum_j \displaystyle \sum_{x \in C_j} x$

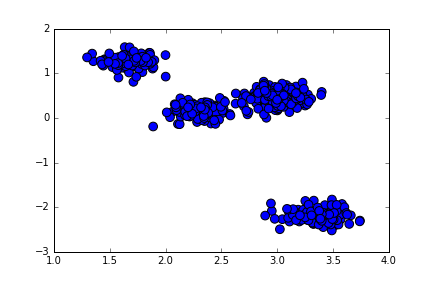

Data Clustering

What makes a good cluster?

• Does it look reasonable?
• Does it look reasonable to an expert?
• Can it be used in another task?
• Is the result consistent across different clusterings?

Data Clustering

What makes a good cluster?

• Cluster scatter
• Cluster distance
• Spacing

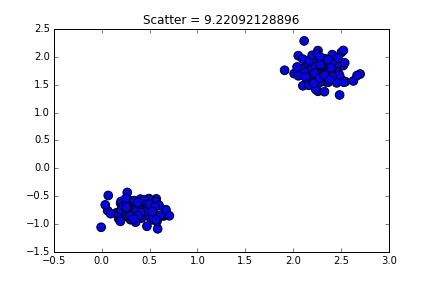

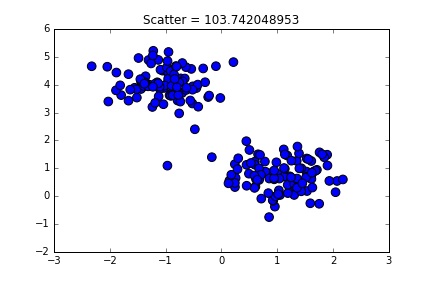

Cluster Scatter

For a given clustering, what is the average variance from centroid for all clusters?

$CS = \displaystyle \sum_j \displaystyle \sum_{x \in C_j} || x - \mu_j ||^2$

Low	High

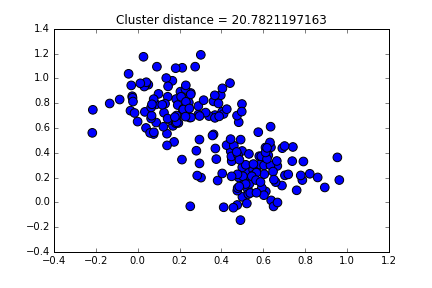

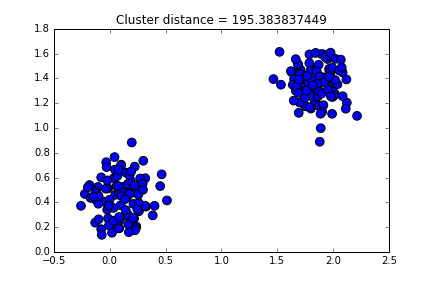

Cluster Distance

How distinct are cluster centroids from the centroid of the entire dataset?

$CS = \displaystyle \sum_j | C_j | \cdot || \mu_j - \mu ||^2$

Low	High

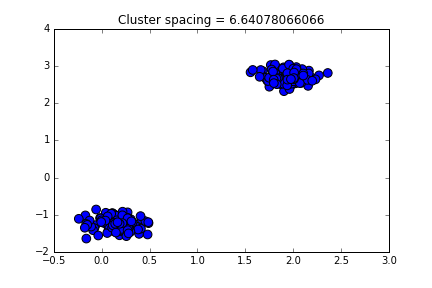

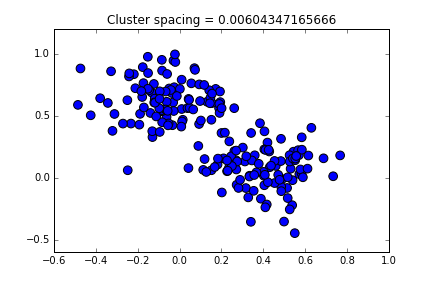

Cluster Spacing

What is the shortest distance between instances of two clusters?

$Spacing = min_{i,j} [ min_{x \in C_i, y \in C_j} || x - y ||^2]$

Low	High

Potential issues

• Sensitivity to feature scaling
• Outliers

Agglomerative Hierarchical Clustering

1. Initialize each point as 1 cluster
2. Iterate:
   • Find most similar pair of clusters
   • Replace with union of clusters

How do we determine "most similar"?

When are we done?

Agglomerative Hierarchical Clustering

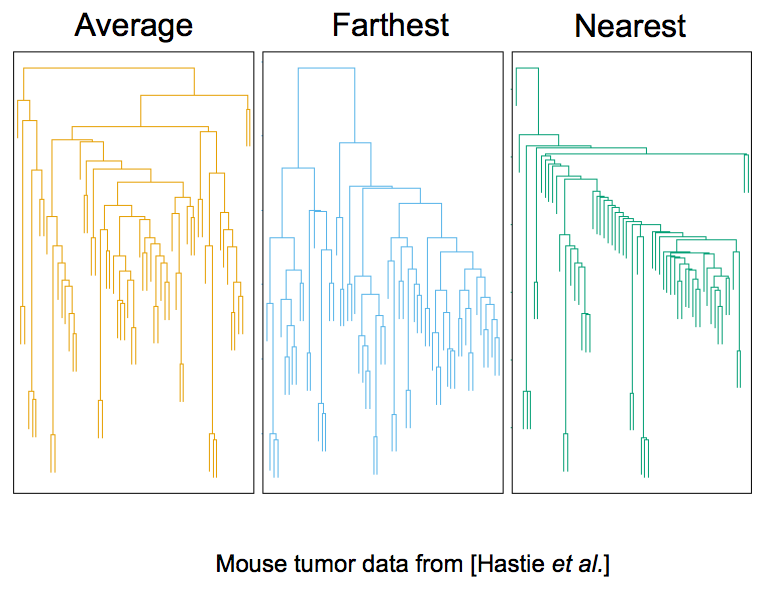

Distance functions for clusters:

$d_{min} (C_i, C_j) = \displaystyle min_{x \in C_i, y \in C_j} || x - y ||^2$

$d_{max} (C_i, C_j) = \displaystyle max_{x \in C_i, y \in C_j} || x - y ||^2$

$d_{avg} (C_i, C_j) = \frac{1}{|C_i| \cdot |C_j|} \displaystyle \sum_{x \in C_i} \displaystyle \sum_{y \in C_j} || x - y ||^2$

Hierarchical Clustering

Agglomerative Hierarchical Clustering

The algorithm yields a sequence of clusterings.

The user decides which clustering is preferred (num clusters, cluster variance, etc.)

Divisive Hierarchical Clustering

1. Initialize all data in 1 cluster
2. Iterate:
   • Choose a cluster and its best split
   • Replace cluster with the split

How do we determine the "best split"?

Limitations of Hierarchical Clustering

Speed

K-means Clustering

Partition the data into $k$ clusters

Iteratively update cluster assignments using centroids

K-means Clustering

1. Initialize centers of $k$ clusters
2. Iterate until convergence:
   • Label each point as closest cluster
   • Recalculate centers

K-means example

K-means example

K-means example

K-means example

K-means example

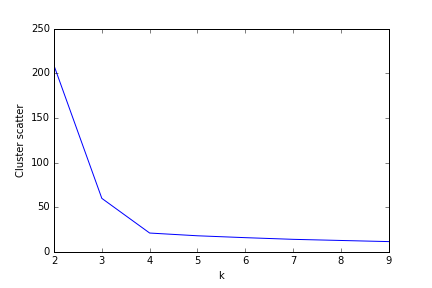

How to pick K?

Run with different values of k, and measure quality

K-means Clustering

Sensitivity to initial conditions

Sensitivity to outliers

K-means Clustering

Sensitivity to initial conditions: repeat with multiple initial conditions

Sensitivity to outliers: use median instead of mean

Comparing Clusterings

From Vinh, Epps and Bailey, 2010

Comparing Clusterings

From Vinh, Epps and Bailey, 2010

Comparing Clusterings

Using the mutual information directly is sensitive to the number of clusters, therefore the normalized mutual information must be calculated by dividing by entropy

From Vinh, Epps and Bailey, 2010
