Model Selection

We may favor the model with lower error/higher accuracy

Even so, is the model with the lowest error on a particular set of data the one that we want?

True error

$error_D(h) \equiv Pr_{x \in D} [f(x) \neq h(x)]$

• f is our target function
• D is the complete distribution/dataset

Sample error

$error_S(h) \equiv \frac{1}{n} \displaystyle \sum_{x \in S} \delta(f(x) \neq h(x))$

• S is the sample dataset
• $\delta(f(x) \neq h(x)) = 1$ if the condition is true, otherwise $0$

True error v. Sample error

How well does $error_S(h)$ estimate $error_D(h)$?

True error v. Sample error

Consider the case where $S$ is our training set:

$bias \equiv E[error_S(h)] - error_D(h)$

For any training set, we expect that bias will be negative because $h$ and $S$ are not independent

What other complications beyond $bias$ might arise?

True error v. Sample error

Even if $S$ and $h$ are independent, $error_S(h)$ may vary from $error_D(h)$

Sample error

$error_S(h)$ is a random variable

If we rerun with a different randomly drawn $S$, where $|S| = n$

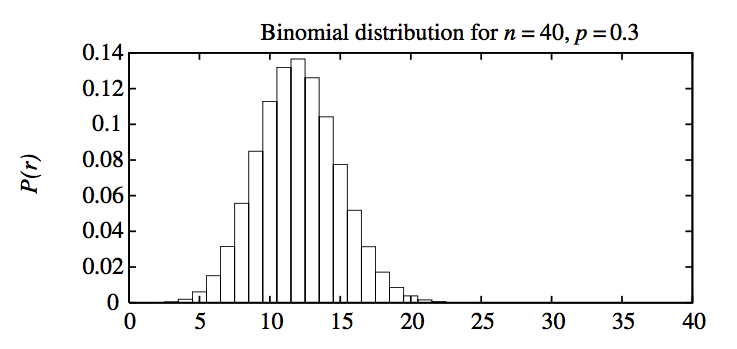

$P( n * error_S(h) ) = P(r) = \frac{ n! } { r! ( n - r )! } p^r ( 1 - p )^{n-r}$,

where $p = error_D(h)$

Samples and Stats

A random variable, $Y$, has a value representing the outcome of an experiment (a coin lands heads up)

Probability distribution for a random variable is the probability $Pr(Y=y_i)$ that Y will be $y_i$ for each possible $y_i$

Samples and Stats

Expected value (aka mean) : $\mu_Y = E[Y] = \displaystyle \sum_i y_i Pr(Y=y_i)$

Variance : $Var(Y) = E[(Y-\mu_Y)^2]$ - How far the distribution spreads about the mean

Standard deviation : $\sigma_Y = \sqrt{ Var(Y) }$

Normal Distribution

Bell curve described by a mean and standard deviation

Normal Distributions

90% of area (probability) lies in $\mu \pm 1.64 \sigma$

N% of area (probability) lies in $\mu \pm z_N \sigma$

Normal Distributions to Probabilities

$x \in \mu \pm z_N \sigma$, translates to: "with probability N%"

$\mu \in x \pm z_N \sigma$, translates to: "with confidence N%"

Normal distributions to Probabilities

Consider $x$, drawn from $\mathcal{N}(\mu,\sigma)$

We say: with confidence 95%, $\mu \in x \pm 1.96 \sigma$

Normal distributions to Probabilities

If sample data $S$ contains $n \geq 30$ samples drawn independent of $h$ and each other,

Then with approx. 95% probability $error_S(h)$ lies in interval

$error_D(h) \pm 1.96 \sqrt{\frac{error_D(h) (1 - error_D(h))}{n}}$

Central Limit Theorem

Consider a set of independent, identically distributed random variables $Y_1 ... Y_n$, drawn from an arbitrary probability distribution with mean $\mu$ and finite variance $\sigma^2$. The sample mean is

$\bar{Y} \equiv \frac{1}{n} \displaystyle \sum^{n}_{i=1} Y_i$

Central Limit Theorem

$\bar{Y} \equiv \frac{1}{n} \displaystyle \sum^{n}_{i=1} Y_i$

As $n \rightarrow \infty$, the distribution governing $\bar{Y}$ approaches a Normal distribution with mean $\mu$ and variance $\frac{\sigma^2}{n}$

Central Limit Theorem

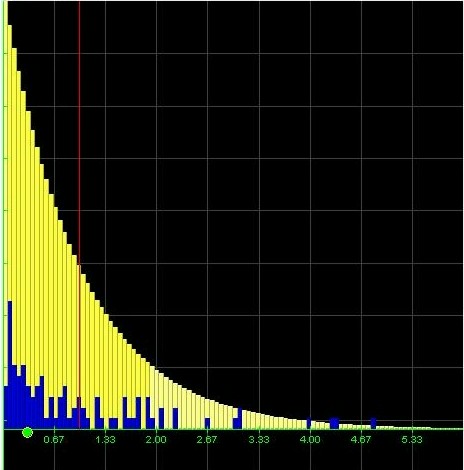

Yellow indicates the shape of underlying distribution (Weibull), blue bars are 50 averages of 1 sample

Central Limit Theorem

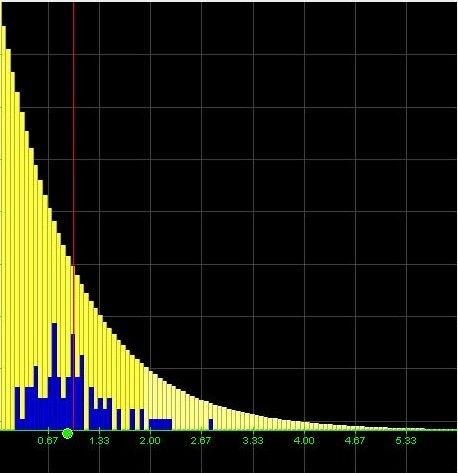

Yellow indicates the shape of underlying distribution, blue bars are 50 averages of 5 samples

Central Limit Theorem

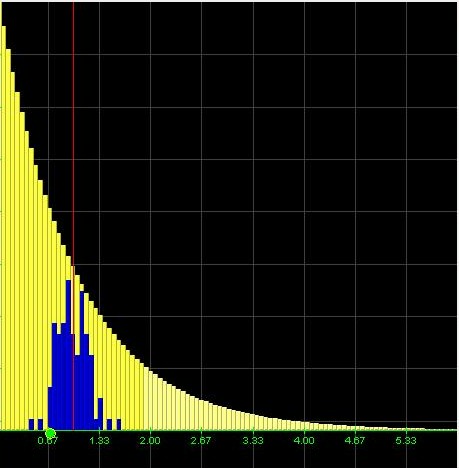

Yellow indicates the shape of underlying distribution, blue bars are 50 averages of 25 samples

Detailed explanation

From Binomial to Normal

By applying the central limit theorem we can approximate a binomial distribution with a normal distribution

We can then say:

• $\mu_{error_S(h)} = error_S(h)$
• $\sigma_{error_S(h)} \approx \sqrt{ \frac{error_S(h) (1 - error_S(h)) } {n} }$

Measuring Classifier Performance

If we use a classifier on a test set with $n$ samples

We estimate the error rate as $\hat{p} = \frac{|incorrect|}{n}$

If $n \geq 30$, (use C.L.T.) $\hat{p}$ is approx. distributed as $\hat{p} = \mathcal{N}(\mu, \sigma)$

Measuring Classifier Performance

If $n \geq 30$, (use C.L.T.) $\hat{p}$ is approx. distributed as $\hat{p} = \mathcal{N}(\mu, \sigma)$

$\mu$ is $error_D(h)$, and $\sigma$ is $\sqrt{ \frac{error_D(h) (1-error_D(h)) }{n} }$

Oi, we're stuck with $error_D(h)$'s in our expression!

Comparing Algorithms

Consider 2 hypotheses $h_1$ and $h_2$, each tested on an independenly generated sample set from the same distribution

It would be interesting to know the difference in error

$d \equiv error_D(h_1) - error_D(h_2)$

Comparing Algorithms

Target: $d = error_D(h_1) - error_D(h_2)$

Estimate with: $\hat{d} \equiv error_{S_1}(h_1) - error_{S_2}(h_2)$

Comparing Algorithms

Estimate with: $\hat{d} \equiv error_{S_1}(h_1) - error_{S_2}(h_2)$

Use C.L.T., to estimate the distribution

$\sigma_{\hat{d}} = \sqrt{ \frac{error_{S_1}(h_1) (1 - error_{S_1}(h_1))}{ n_1} + \frac{ error_{S_2}(h_2) ( 1 - error_{S_2}(h_2) ) }{n_2} }$

Comparing Algorithms

Find the lower and upper limit of the interval such that N% of probability mass is within the interval:

$\hat{d} \pm z_N \sqrt{ \frac{error_{S_1}(h_1) (1 - error_{S_1}(h_1))}{ n_1} + \frac{ error_{S_2}(h_2) ( 1 - error_{S_2}(h_2) ) }{n_2} }$

Lookup in the table of $N%$ to $z_N$ values

A Method for Comparing Algorithms

Now consider hypotheses $h_A$ and $h_B$

Partition into k-folds, $T_1 ... T_k$, of equal size $\geq 30$

For $i$ from $1$ to $k$: $\delta_i \leftarrow error_{T_i}(h_A) - error_{T_i}(h_B)$

A Method for Comparing Algorithms

For $i$ from $1$ to $k$: $\delta_i \leftarrow error_{T_i}(h_A) - error_{T_i}(h_B)$

N% confidence interval estimate:

$\bar{ \delta } \pm t_{N,k-1} s_{\bar{\delta}}$

$s_{\bar{\delta}} \equiv \sqrt{ \frac{1}{k(k-1)} \displaystyle \sum_{i=1}^k (\delta_i - \bar{ \delta })^2 }$

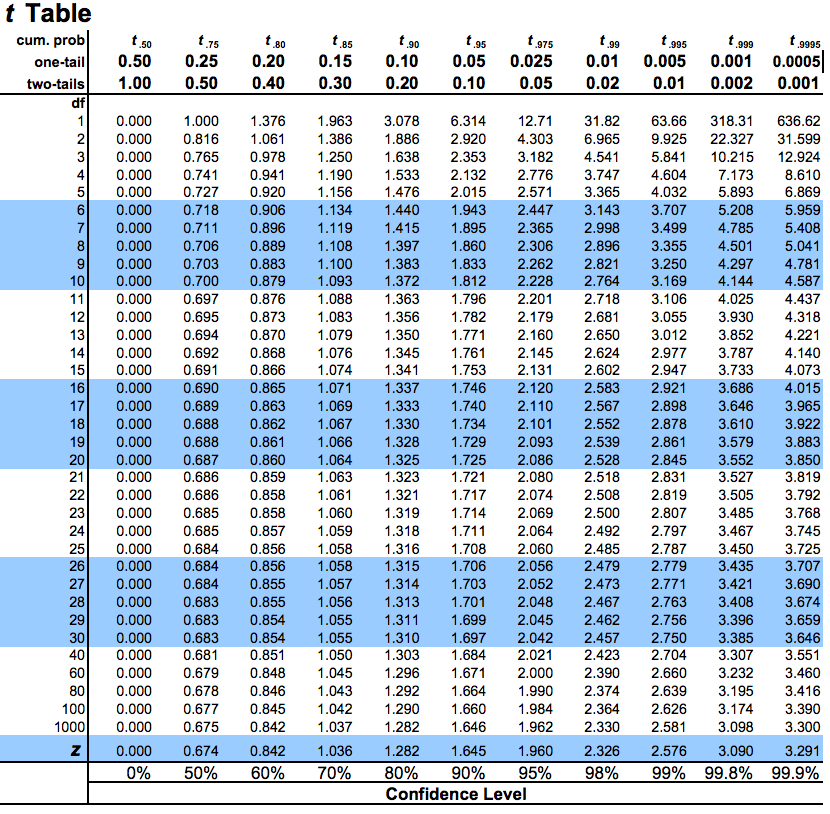

Where did $t_{N,k-1}$ come from?

A Method for Comparing Algorithms

A Method for Comparing Algorithms

Now consider hypotheses $h_A$ and $h_B$

Target: $d = error_D(h_A) - error_D(h_B)$

N% confidence interval estimate:

$\bar{ \delta } \pm t_{N,k-1} s_{\bar{\delta}}$

$s_{\bar{\delta}} \equiv \sqrt{ \frac{1}{k(k-1)} \displaystyle \sum_{i=1}^k (\delta_i - \bar{ \delta })^2 }$

Model Selection

What did we just do?

Model Selection

• Estimating true error from a sample set
• Sample error follows a binomial distribution
• Using the Central Limit Theorem, sampling can lead to a normal distribution
• Hypotheses can be compared with a t-test
