k-Nearest Neighbors

Given a dataset $D$ with $N$ observations and $p$ dimensions

Every point $i$ is expressed as:

$x^i = ( x^i_1, x^i_2, ..., x^i_p )$

(Euclidean) distance between 2 points $i$ and $j$:

$d(x^i,x^j) = ( \displaystyle \sum^p_{m=1} ( x^i_m - x^j_m )^2 )^{1/2}$

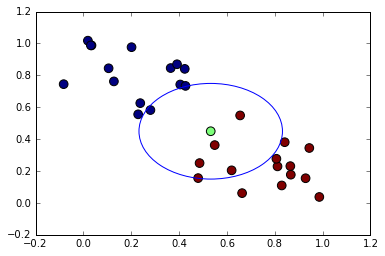

k-Nearest Neighbors

For some unseen observation $\hat{x}$

$k=5$

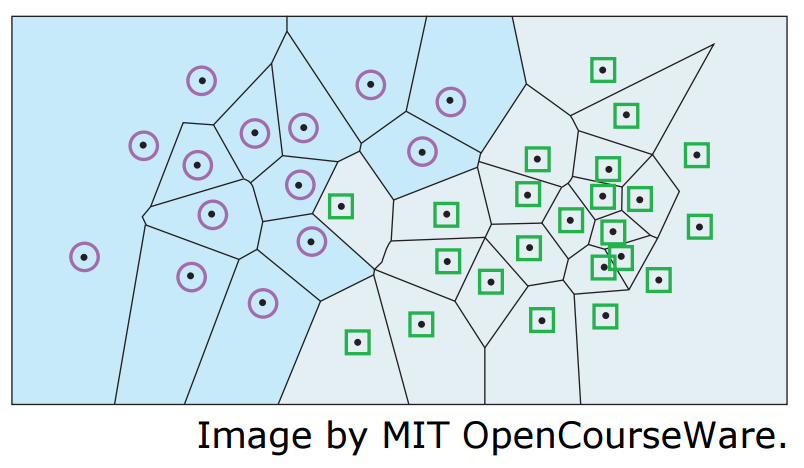

Decision Boundaries kNN

Decision boundaries are defined over the Voronoi diagram

k-Nearest Neighbors

For some unseen observation $\hat{x}$

$k=9$

Do we want the majority in this case?

Distance-weighted kNN

Blue distances: 1.26803066901
Red distances: 0.711786575594

kNN in Practice

Housing prices

Attributes of houses:

• location
• bedrooms, bathrooms
• square footage

What if we used the hexidecimal color of the house?

Regression with kNN

For some house that hasn't gone on the market $\hat{x}$

Estimated value of house $\hat{x}$:$185,173.39

An Ode to ID3

An ID3

Decision tree

Is built greedily

So either stop soon*

Or eventually prune

Otherwise you're probably overfitting

*where soon is statistically significant

Decision Trees

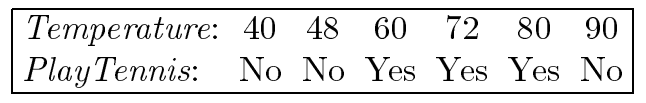

Handling Continuous Values

Make it discrete!

$(Temperature > \frac{( 48 + 60 )}{2} )$

Consider each boundary (i.e. $\frac{a+b}{2}$)

Use information gain to choose node as usual

Handling Missing Values

Some observations may not have values for all attributes

That's OK, we'll use it anyway

Multiple options:

• When we get to the relevant node, $N$, assign the most common value of $A$ at $N$
• Assign most common value of $A$ at $N$ that maps to class $C$
• Use probabilities based on distribution of $A$ at $N$

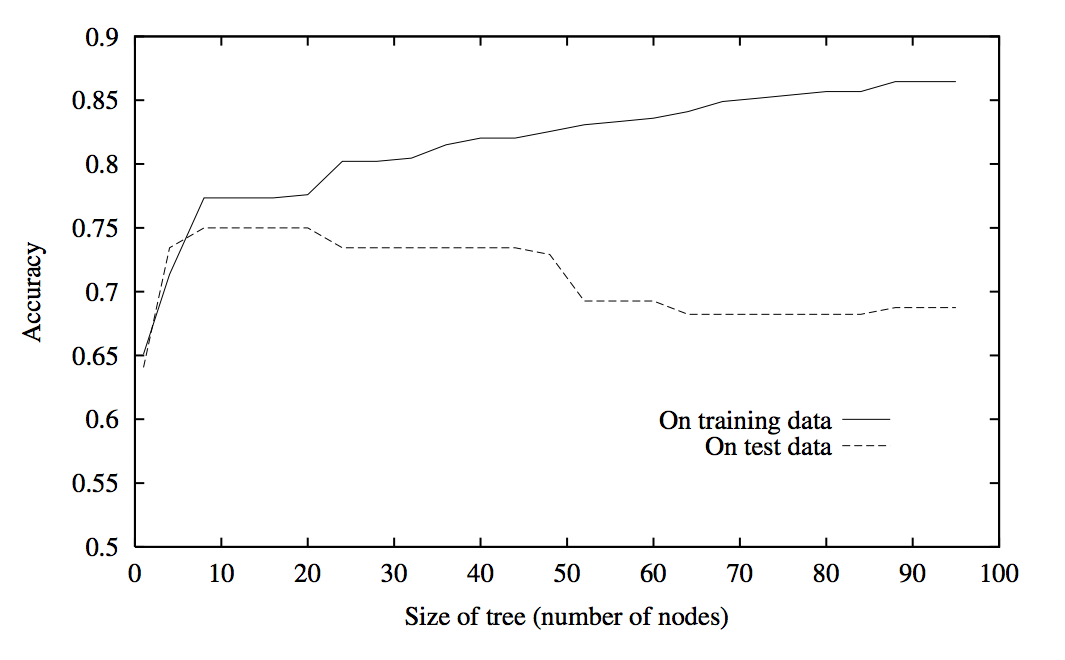

Overfitting

Reduced-error pruning

• Build a tree as usual, potentially overfitting
• Use a validation dataset
• Greedily remove nodes that improve the accuracy on the validation data

Rule Post-Pruning

$(Outlook=Sunny \wedge Humidity=High) \implies No$

Rule Post-Pruning

Grow tree, allowing it to overfit

Convert a tree to a collection of rules

Remove each precondition that improves accuracy (on validation set)

Sort rules by estimated accuracy, and maintain sorted order for classification

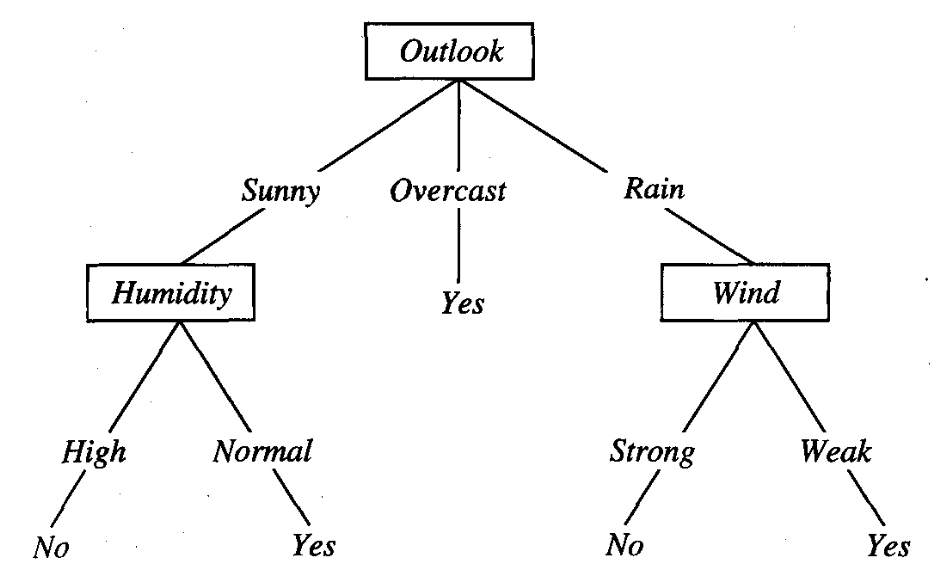

Rules from Tree

$(Outlook=Sunny \wedge Humidity=High) \implies No$

$(Outlook=Sunny \wedge Humidity=Low) \implies Play$

$(Outlook=Overcast) \implies Play$

$(Outlook=Rain \wedge Wind=Weak) \implies Play$

$(Outlook=Rain \wedge Wind=Strong) \implies No$

Pruning Preconditions

$(Outlook=Rain \wedge Wind=Weak) \implies Play$

$(Outlook=Rain \wedge Wind=Strong) \implies No$

Pruning Preconditions

$(Outlook=Rain \wedge Wind=Weak) \implies Play$

$(Outlook=Rain \wedge Wind \neq Strong) \implies No$

Pruning Preconditions

$(Outlook=Rain \wedge Wind=Weak) \implies Play$

$(Outlook=Rain) \implies No$

Sorting Rules by Accuracy

$(Outlook=Rain) \implies No$

$(Outlook=Rain \wedge Wind=Weak) \implies Play$

Sorted rules

$(Outlook=Sunny \wedge Humidity=High) \implies No$

$(Outlook=Sunny \wedge Humidity=Low) \implies Play$

$(Outlook=Overcast) \implies Play$

$(Outlook=Rain) \implies No$

$(Outlook=Rain \wedge Wind=Weak) \implies Play$

Classification with rules

$(Outlook=Sunny \wedge Humidity=High) \implies No$

$(Outlook=Sunny \wedge Humidity=Low) \implies Play$

$(Outlook=Overcast) \implies Play$

$(Outlook=Rain) \implies No$

$(Outlook=Rain \wedge Wind=Weak) \implies Play$

Advantages of Rule Pruning

Why might one like rule pruning over reduced-error pruning?

Advantages of Rule Pruning

• More specific than removing entire subtrees
• Can remove distinctions near the root

Used in C4.5 (J48)

Growing a tree with chi-squared

Before making a split, test if the split is statistically significant

Proposing a split

Given training dataset $D$

Propose a split on attribute $A$

Notation:

• $N_c$ is number of instances with class $c$
• $D_x$ is data with value $x$ for attribute $A$
• $N_x$ is the number of instances in $D_x$
• $N_{xc}$ is the number of instances in $D_x$ with class $c$

Null Hypothesis

Null hypothesis: $A$ is irrelevant

The total proportion of class $c$ in $D$ is $N_c/N$

If the null hypothesis is true, then on average:

$\hat{N}_{xc} = \frac{N_c}{N} |D_x|$

Deviation from Null

Even if null hypothesis is true,

it will rarely be exactly $=$ to average

Measure deviation as:

$Dev=\displaystyle \sum_x \displaystyle \sum_c \frac{ ( N_{xc} - \hat{N}_{xc} )^2 } {\hat{N}_{xc}}$

Deviation from Null

Measure deviation as:

$Dev=\displaystyle \sum_x \displaystyle \sum_c \frac{ ( N_{xc} - \hat{N}_{xc} )^2 } {\hat{N}_{xc}}$

How far is our observed proportion from the expected proportion (based on the distribution within the dataset)

Using the Deviation

Deviation is the chi-squared statistic

The larger the deviation, the further we are from the null hypothesis that an attribute is irrelevant

If $Dev$ is small, then we don't want the branch

Using the Deviation

Put $Dev$ into a chi-square table

How many degrees-of-freedom?

$DF = ( ( \mbox{# of attribute-values} ) - 1 ) ( \mbox{# of classes} - 1 )$

*

*Wikipedia, By Geek3 - Own work, CC BY 3.0, $3

Using the Deviation

Chi-square table will give a probability

A large Dev leads to a small probability $\implies$ the pattern is rare relative to the null hypothesis

Split if $probability < \alpha$

What should $\alpha$ be? 0.05 is a default

Reflecting on chi-squared

Doesn't require separate validation data

Statistical tests become less valid with less data

$\alpha$ is a parameter

Final Projects

Proposal due: March 7

Study a novel dataset with an advanced algorithm

Extend a ML algorithm

Do a comparative study of multiple algorithms

Final Projects

Due: April 25

Turn in a write-up (8-12 pages)

• Background on problem
• Related work
• Your method
• Results
• Conclusion and future work
• References

Should have at least 10 references

If multiple people, then more work is expected
